AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control

WIFI : 2.5GHz

Protection : IP67

Key Feature : 2.4 Inch LCE Sreen

Brand Name : ANS

Model Number : 11KW

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : 10000pcs/month

Delivery Time : 5-8days

Packaging Details : Box

Cable Colour : Black Or Customization

Contact Now

Type2 AC110V/230V Portable EV Charger with WiFi APP Control

This high-performance 11kW portable EV charger delivers reliable charging with advanced features for home and on-the-go use, featuring WiFi/Bluetooth control and IP67 protection rating.

Key Features

Date and time tracking with charging history (up to 30 records)
Multi-national language selection
Adjustable current from 6A to 16A in 1A increments
Scheduled charging appointments (weekly/time-based)
Auto screen/LED shutoff based on timer settings
APP remote control via Bluetooth and WiFi (2.4GHz)
Multiple charging modes (RFID/APP/Password/Plug and Play)
Advanced load control with adjustable phase number and current (ModBus TCP)

Technical Specifications

Product Model	EVB03B
Input/Output Voltage	AC 110V/230V
Input Frequency	50/60Hz
Max. Output Power	1-Phase up to 3.7kW (@230V 16A)
Max. Output Current	16A for 1-Phase
Standard	IEC 62752:2016/COR1:2019
Certification	CE, RoHS

Protection Features

Over-voltage protection
Under-voltage protection
Overload protection
Short circuit protection
Leakage protection
Over-temperature protection
Lightning protection

Functionality & Accessories

LED indicators
2.4-inch LED screen
Type B RCD (AC 30mA+DC 6mA)
Current adjustment
Relay adhesion detection
RFID management
WiFi/Bluetooth (WiFi 2.4GHz)

Environmental Specifications

IP67 protection rating
Operating temperature: -30℃ to 55℃
Relative humidity ≤95%RH
Operating elevation limit ≤2000m
Natural air cooling
Standby power consumption <3W

Physical Parameters

5m charging cable (standard)
Control box dimensions: 200*90*52mm (H*W*D)
Weight ≤3kg
Black color (customizable)
PC material (flame retardant, UV resistant)

Product Images

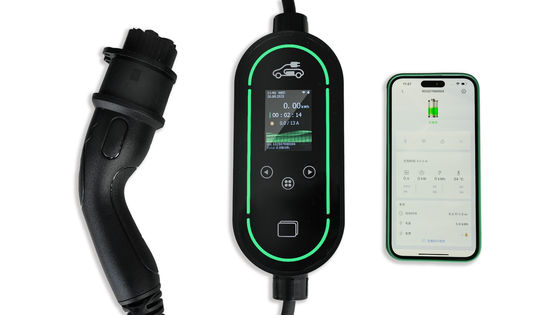

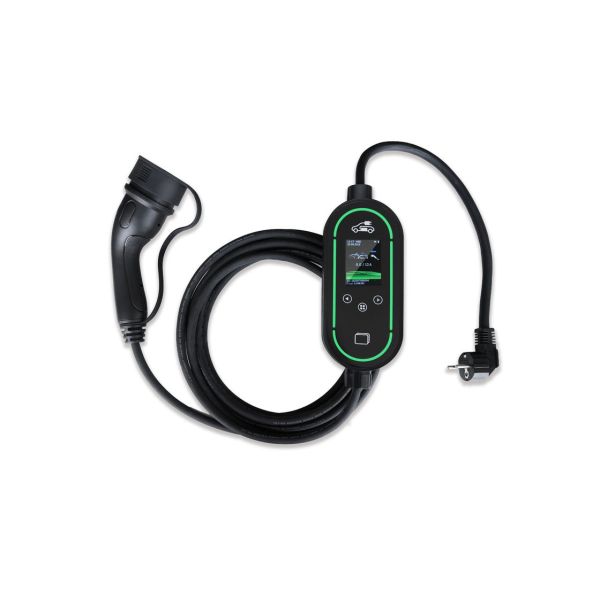

AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control

Additional Information

Brand Name	ANS
Model Number	EVB03B
MOQ	1
Packaging Details	15.7153.15(in)
Payment Terms	L/C, T/T, Western Union
Supply Ability	100,000 PCS/month

Product Highlights

3kW Portable EV Charger
AC110V/230V Electric Vehicle Charger
WiFi 2.4GHz EV Charging Cable

Detailed Product Information
